Automotive Assembly Equipment

    PHD offers many product solutions for the automotive assembly industry for processes including assembly, hot forming, interiors, lifting & positioning, part identification, stamping, thermoforming, welding, and workholding.

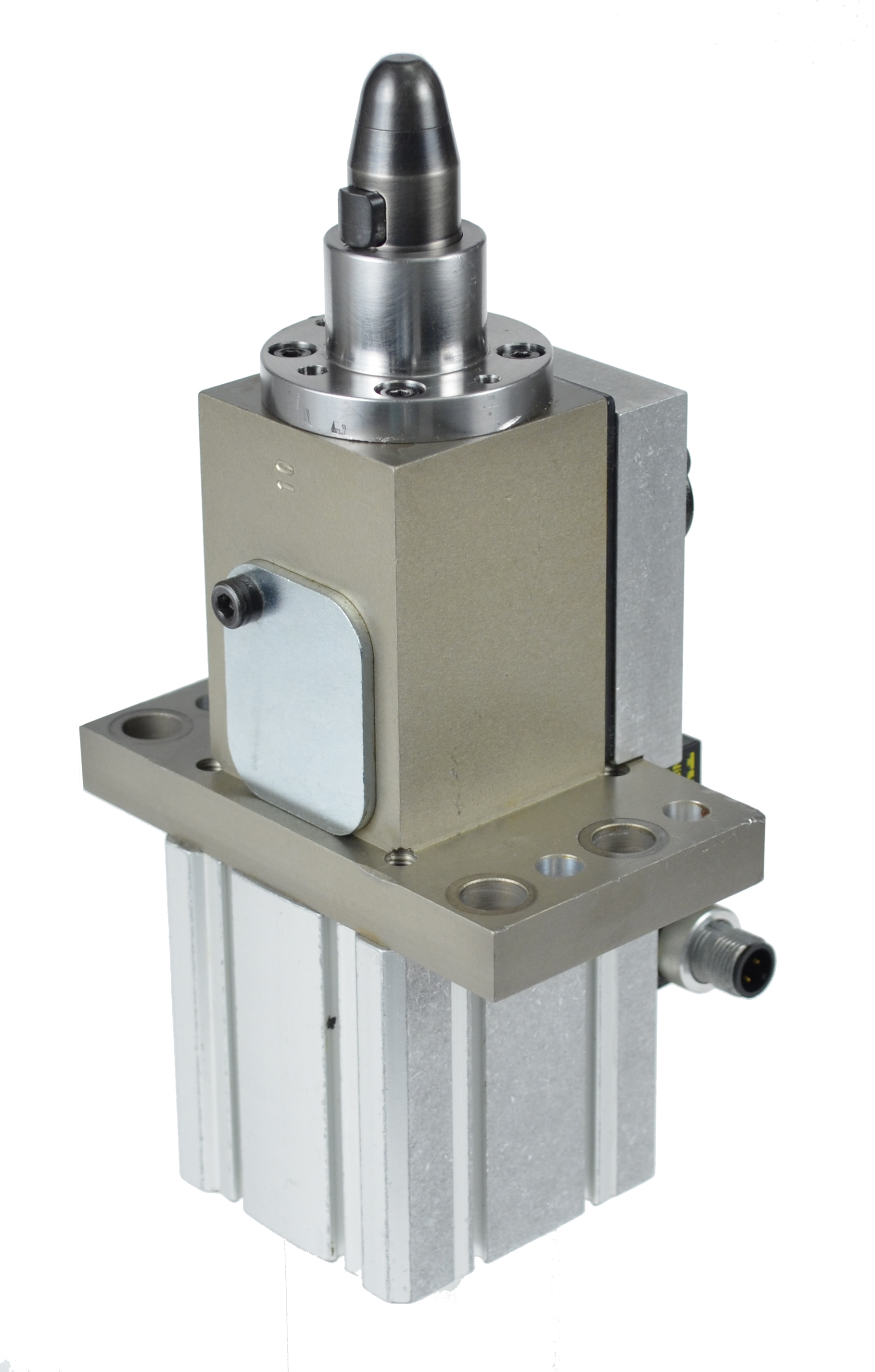

    Blind Finger Pin Clamp

    Blind Finger Series PLK Pin Clamp - C6177

    • Finger comes out on one side of the pin - no cut out on the back side
    • Enclosed pin prevents contamination
    • Will not damage aluminum panel on back side opposite of finger

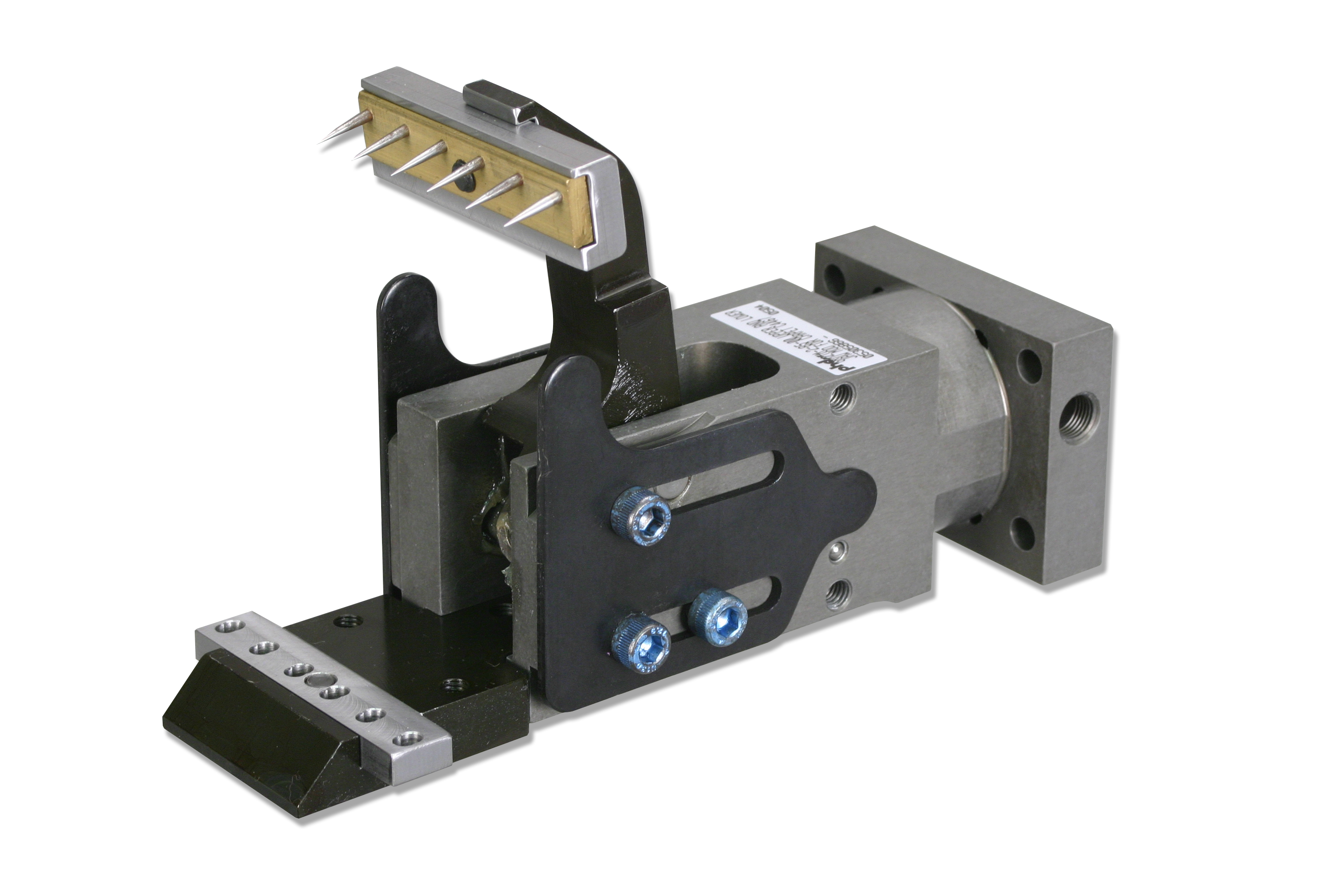

    Carpet Stretching and Molding Clamp

    Carpet Stretching and Molding Clamp - C4511

    • Simple design, long life, high clamp force, and fast field maintenance
    • Multiple jaw configurations and tips are available to fit your applications requirements
    • The jaws of the Series GRM Clamp lock in the closed position ensuring part retention if air pressure is lost due to line rupture or power loss

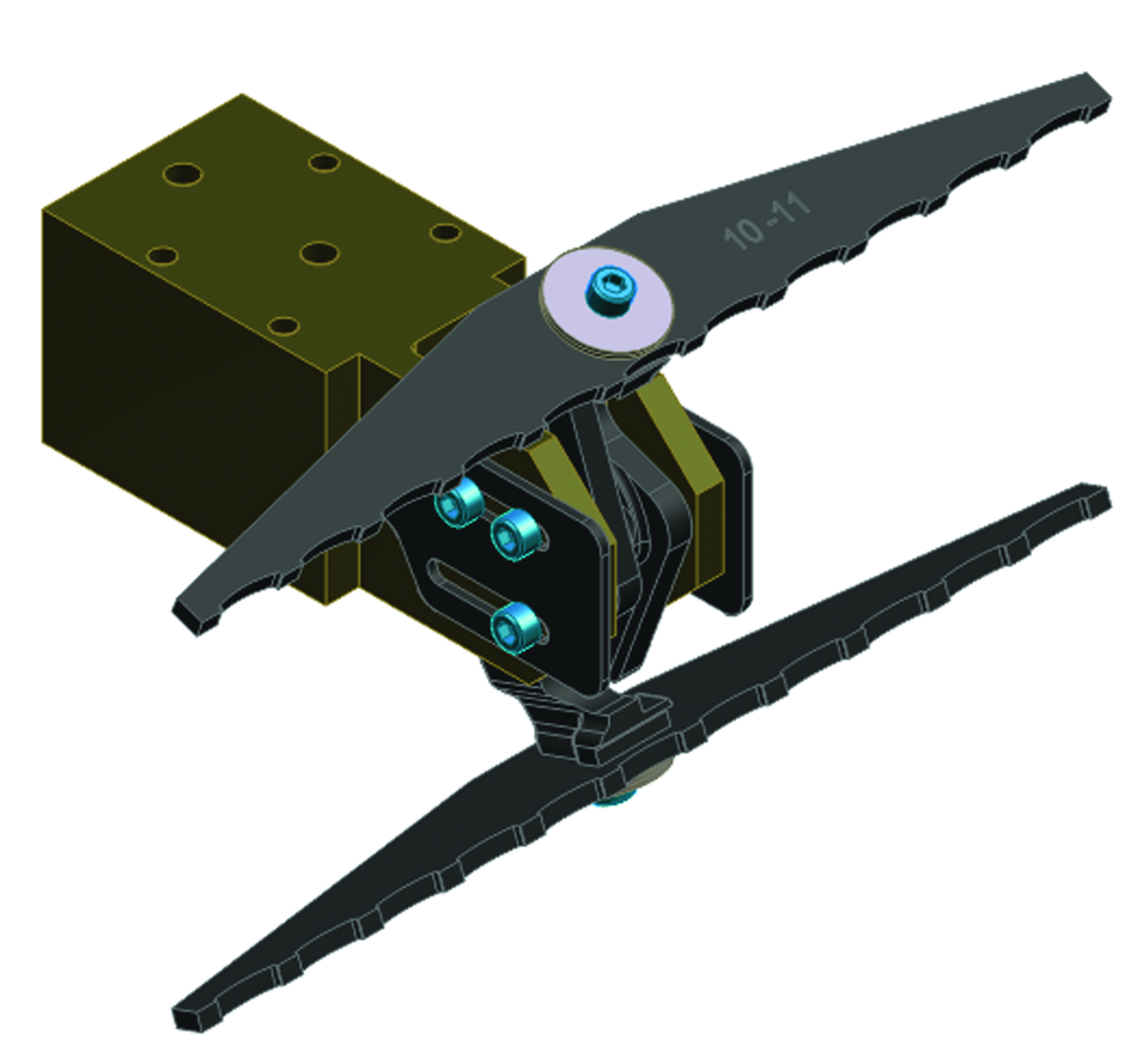

    High Temperature Clamp

    High Temperature Clamp - C4225

    • High performance at 250°F (121°C)
    • Spring close, pneumatic open
    • Special seals and lube protect clamp from elevated temperature
    • Elongated tips for part stability

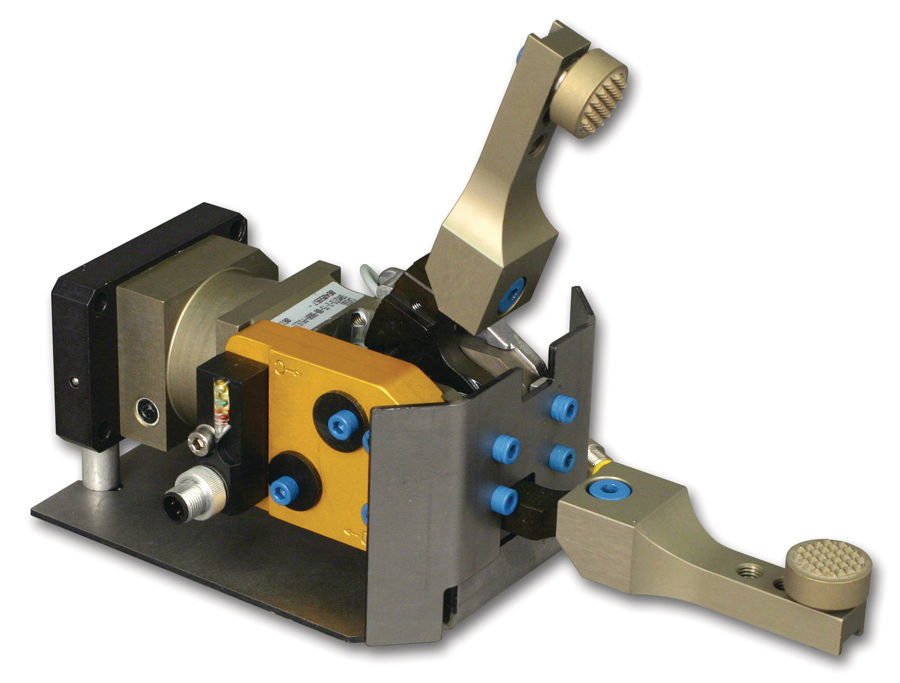

    High Temperature Clamp

    High Temperature Clamp - C4556

    • High performance at temps exceeding 1700°F (927°C)
    • Rear manifold moves plumbing away from heat source
    • Heat dissipating shields minimize radiant heat
    • Specially coated tips to reflect heat

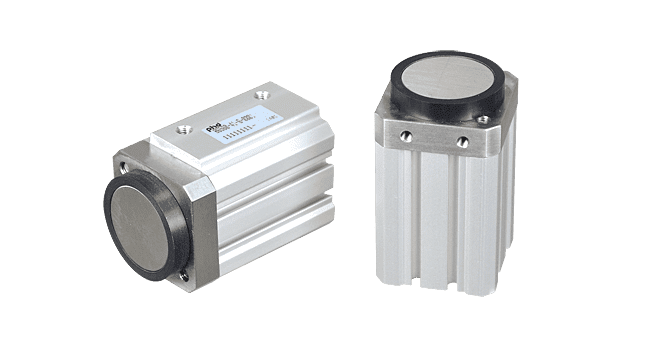

    magnetic gripper

    Magnetic Gripper - Model 86560

    • No expensive tooling
    • Variability of part pick up
    • No electric lines required

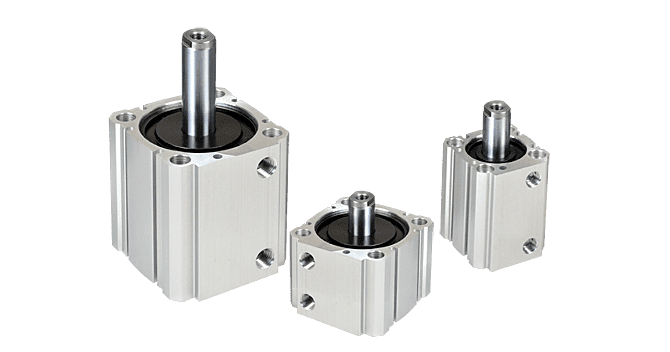

    Series CRS Pneumatic Compact Cylinder

    Series CRS Pneumatic Compact Cylinder

    • Compact design for applications where space is limited
    • Up to six switch slots for flush switch mounting
    • Self-lubricating nitrile piston seal for long cylinder life

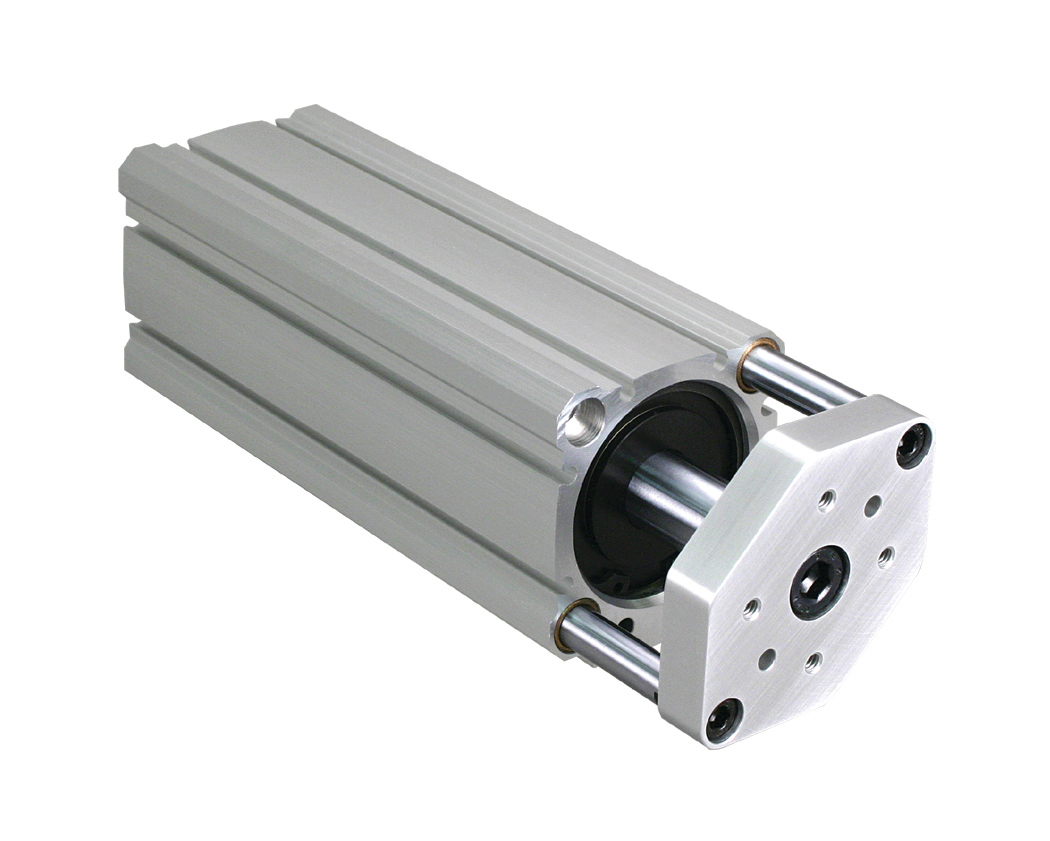

    Series CTS Guided Pneumatic Compact Cylinder

    Series CTS Guided Pneumatic Compact Cylinder

    • Compact design for applications where space is limited
    • Hard chrome plated guide shafts for anti-rotation and increased side load capacity
    • Up to six switch slots for flush switch mounting

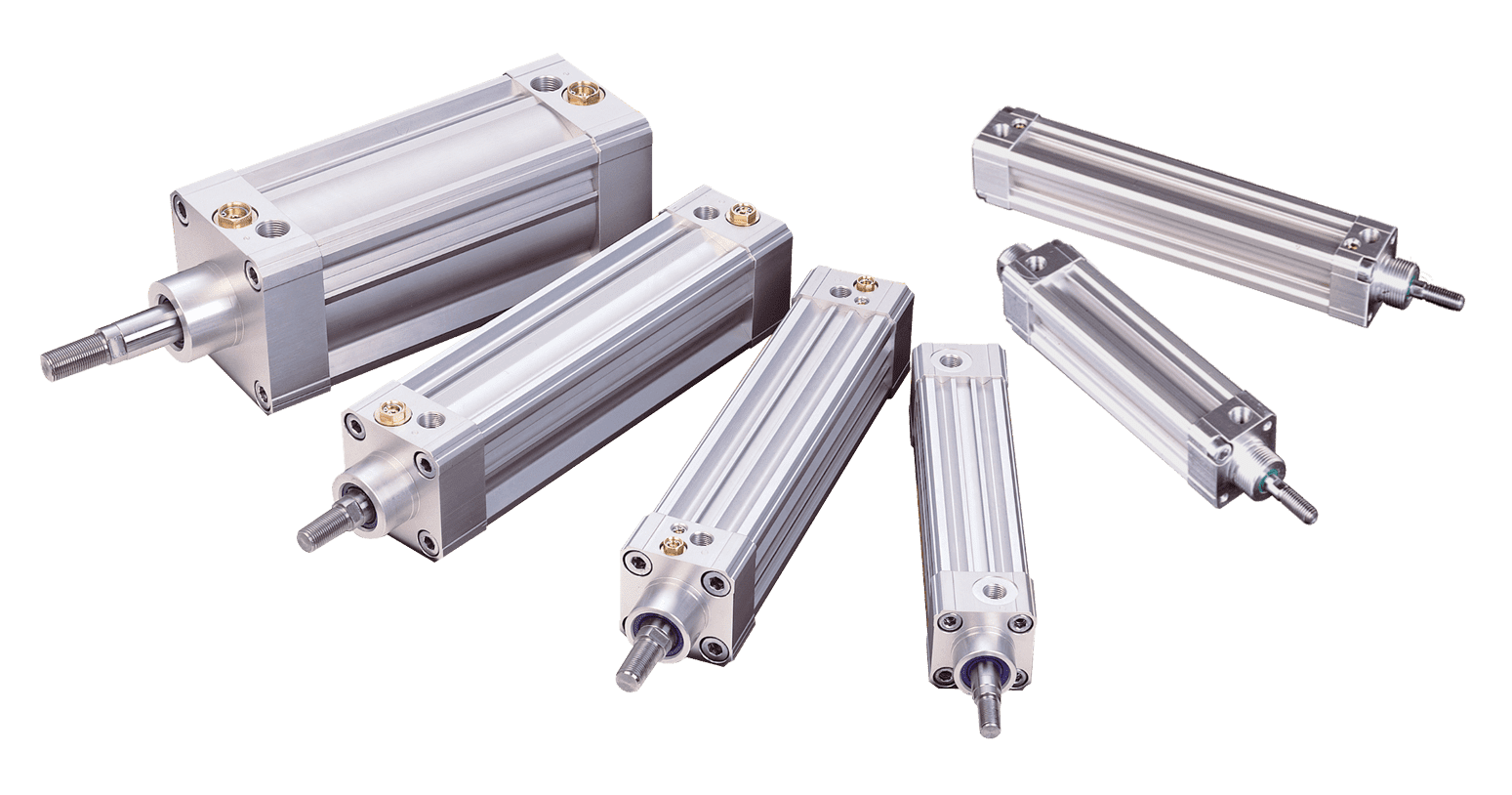

    Series CV Pneumatic ISO Cylinder

    Series CV Pneumatic ISO Cylinder

    • ISO/VDMA interchange for easy mounting (metric unit)
    • Imperial unit provides simplified integration in imperial facilities
    • PTFE wear ring and built-in shock pads for long cylinder life

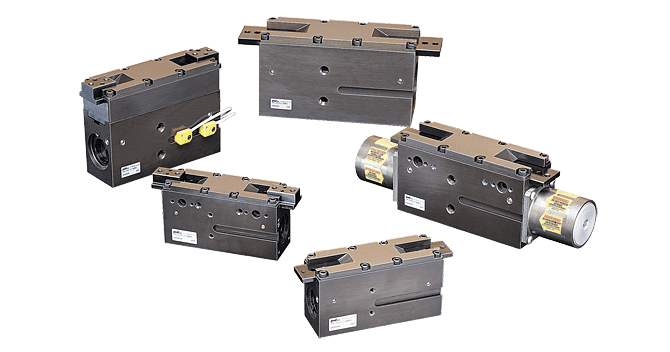

    Series GRC Rotary Parallel Pneumatic Gripper

    Series GRC Rotary Parallel Pneumatic Gripper

    • Available in four sizes (imperial and metric) with two body and jaw styles
    • High grip force to weight ratio for efficient use of space and power
    • Internal jaw mechanism is constructed of hardened steel components and is enclosed for a minimum life of 10 million trouble-free cycles
    Series GRM Clamp with High Temperature Options

    Series GRM Clamp with High Temperature Options

    • Superior delivery
    • Seals and lube rated to 200°C (392°F)
    • Ceramic coated tips minimize thermal transfer

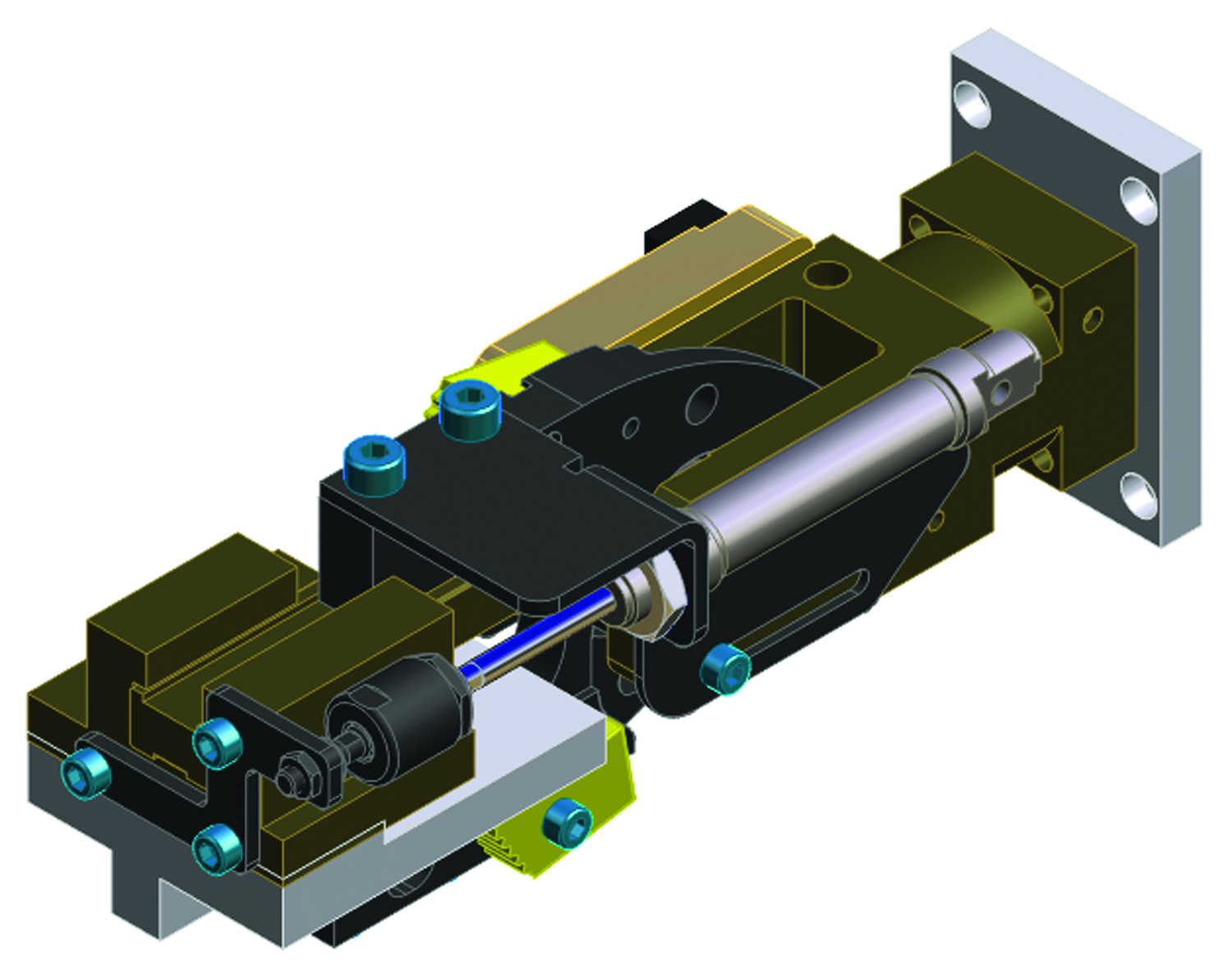

    Series GRM Pneumatic Clamp with Piggy Back Cylinder - C4400

    Series GRM Pneumatic Clamp with Piggy Back Cylinder - C4400

    • Sliding jaw tooling to stretch material as it is gripped
    • Built upon standard GRM Clamp technology
    • Open/close sensing
    Series GRM Pneumatic Workholding Clamp

    Series GRM Pneumatic Workholding Clamp

    • Highly modular design for countless configurations
    • Jaws lock in the closed position to ensure part retention
    • Superior delivery on standard models
    Series PA Pneumatic Swing Clamp

    Series PA Pneumatic Swing Clamp

    • Three-ball helix design distributes external loads
    • Compact sizes maximize available work space
    • Superior delivery
    Series PB Versatile Pneumatic Swing Clamp

    Series PB Versatile Pneumatic Swing Clamp

    • Available in 25 to 50mm bores
    • Short and long strokes for design flexibility
    • Drop-in replacement for competitive models
    • Patented options maximize performance
    Series PEC Pneumatic Toggle Clamp

    Series PEC Pneumatic Toggle Clamp

    • Widest clamp force range in the industry
    • Constant clamp force compared to toggle designs
    • Locks closed to ensure part retention
    Series PFC Pneumatic Frame Clamp - Mongo

    Series PFC Pneumatic Frame Clamp - Mongo

    • Up to 52,000 lbs of total clamp force
    • High-force forming clamp
    • Long jaw travel positioning clamp
    • Ideal for large part applications
    Series PHL Heavy Duty Pneumatic Lifter Slide

    Series PHL Heavy Duty Pneumatic Lifter Slide

    • Drop-in replacements for competitive models
    • Replaceable bearings
    • Multiple strokes and options available
    Series PLC Robust Pneumatic Pin Clamp

    Series PLC Robust Pneumatic Pin Clamp

    • Rugged design for harsh applications
    • Multiple pin diameters available
    • Enclosed finger design superior to competitive models
    Series PLK Versatile Pneumatic Pin Clamp

    Series PLK Versatile Pneumatic Pin Clamp

    • One actuator locates and holds part simultaneously
    • Enclosed finger design minimizes costly down time
    • Locking mechanism holds part if air pressure is lost
    • Drop in replacement opportunities
    Series PLKD Pneumatic Disappearing Pin Clamp

    Series PLKD Pneumatic Disappearing Pin Clamp

    • Main pin retracts fully into part support for easy part removal
    • Standard pin diameters from 12.5 to 24.5mm
    • Fingers may extend and retract independently of the main pin
    Series PNC Pneumatic Identification Stamping Clamp

    Series PNC Pneumatic Identification Stamping Clamp

    • Cost effective solution to comparable products
    • Quiet operation
    • Up to 26,000 pounds of total clamp force
    • Stamps characters into draw quality steel

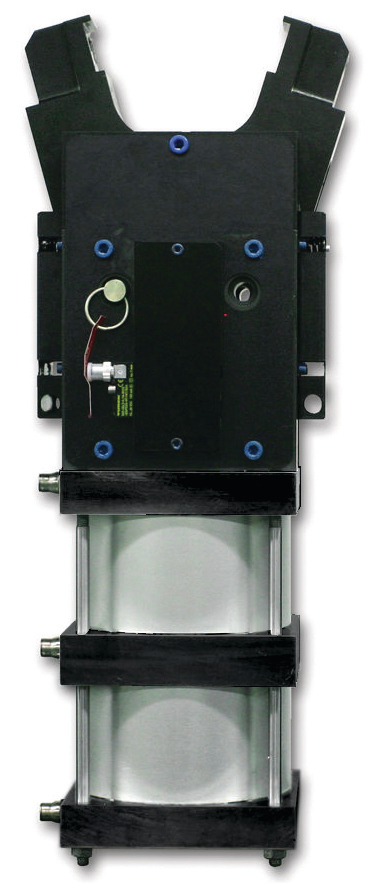

    Series PNC Pneumatic Identification Stamping Clamp - Mongo

    Series PNC Pneumatic Identification Stamping Clamp - Mongo

    • Up to 60,000 lbs of total clamp force
    • Stamping and crimping opportunities for many material types
    • Economical solution to comparable hydraulic and laser marking systems

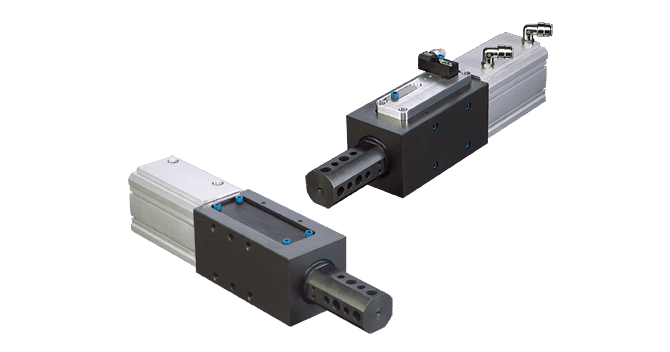

    Series PSP Pneumatic Shot Pin Cylinder

    Series PSP Pneumatic Shot Pin Cylinder

    • Adjustable bearing system can be used to make worn-in units "like new"
    • Internal porting and shock absorption eliminates the need to adjust cushions or flow controls
    • Superior off-center part locating and positioning

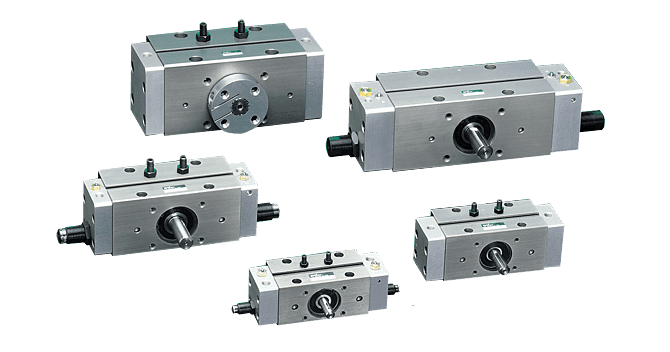

    Series RA High Load Pneumatic Rotary Actuator

    Series RA High Load Pneumatic Rotary Actuator

    • High axial and radial bearing loads
    • Zero backlash at ends of rotation
    • Wide variety of options and accessories

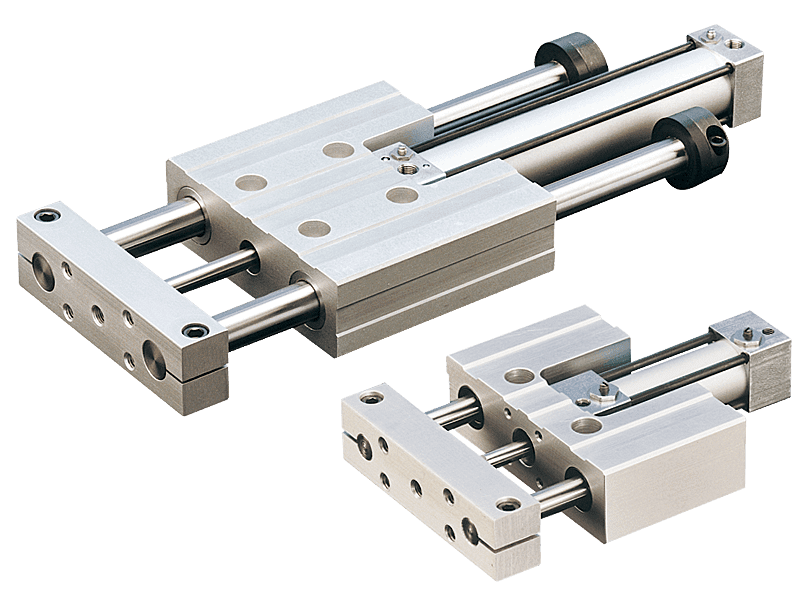

    Series SD/SE Versatile Thruster Pneumatic Slide

    Series SD/SE Versatile Thruster Pneumatic Slide

    • Offered in short or long body in five bore sizes
    • Available with standard or oversize shafts
    • Standard dowel pin holes for ease of mounting
