Battery Manufacturing Equipment

Battery Manufacturing Equipment - PHD understands that dry rooms must meet or exceed the stringent requirements for lithium ion battery manufacturing. That’s why we developed a number of products that have proven to perform at optimum levels while in your dry room production. Many of our products have been thoroughly tested in our dry room chamber with controlled humidity levels of the ambient and actuated air that match or exceed industry dry room specifications.

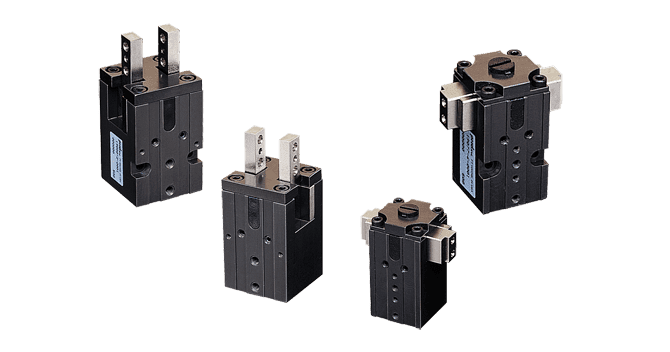

Series 190/191 Micro Parallel Pneumatic Gripper

Series 190/191 Micro Parallel Pneumatic Gripper

  • Compact size ideal for handling small parts in confined areas
  • Rugged jaw and body construction
  • Available in four sizes, two jaw styles, two jaw travels, and mounting holes on one face, or three faces for maximum application versatility

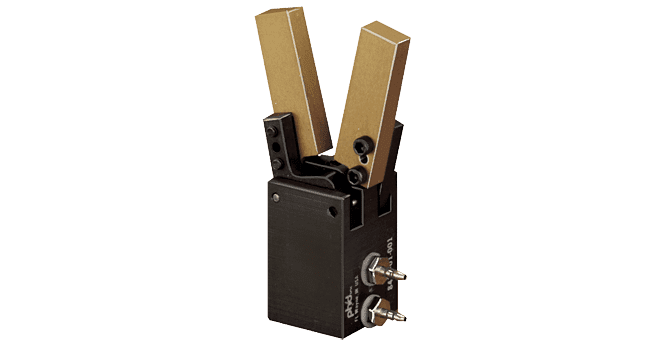

Series 8400 Micro Pneumatic Angular Gripper

Series 8400 Micro Pneumatic Angular Gripper

  • Features a compact design for handling small parts in confined areas
  • Rugged jaw and body construction
  • Close tolerance jaw mechanism minimizes jaw play and dowel pin holes allow precise positioning of tooling

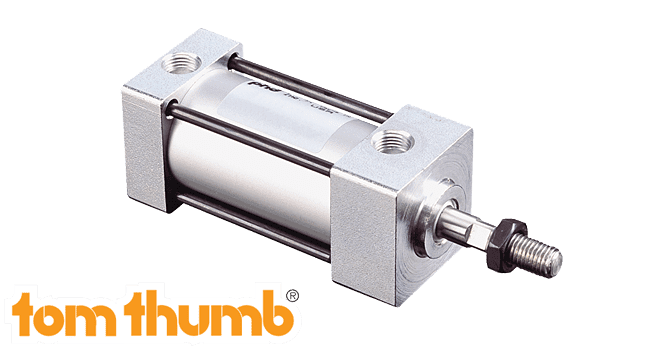

Series A, AV, HV Tie Rod Hydraulic & Pneumatic NFPA Cylinder

Series A, AV, HV Tie Rod Hydraulic & Pneumatic NFPA Cylinder

  • Modified to adapt to specific clean room specifications
  • Designed to provide long life in many rugged applications
  • Wide range of options and sizes


Series CR Pneumatic Compact Cylinder

Series CR Pneumatic Compact Cylinder

  • Short cylinder length
  • Up to six switch slots for flush switch mounting
  • Long life piston seal for long cylinder life
  • Multiple mounting options

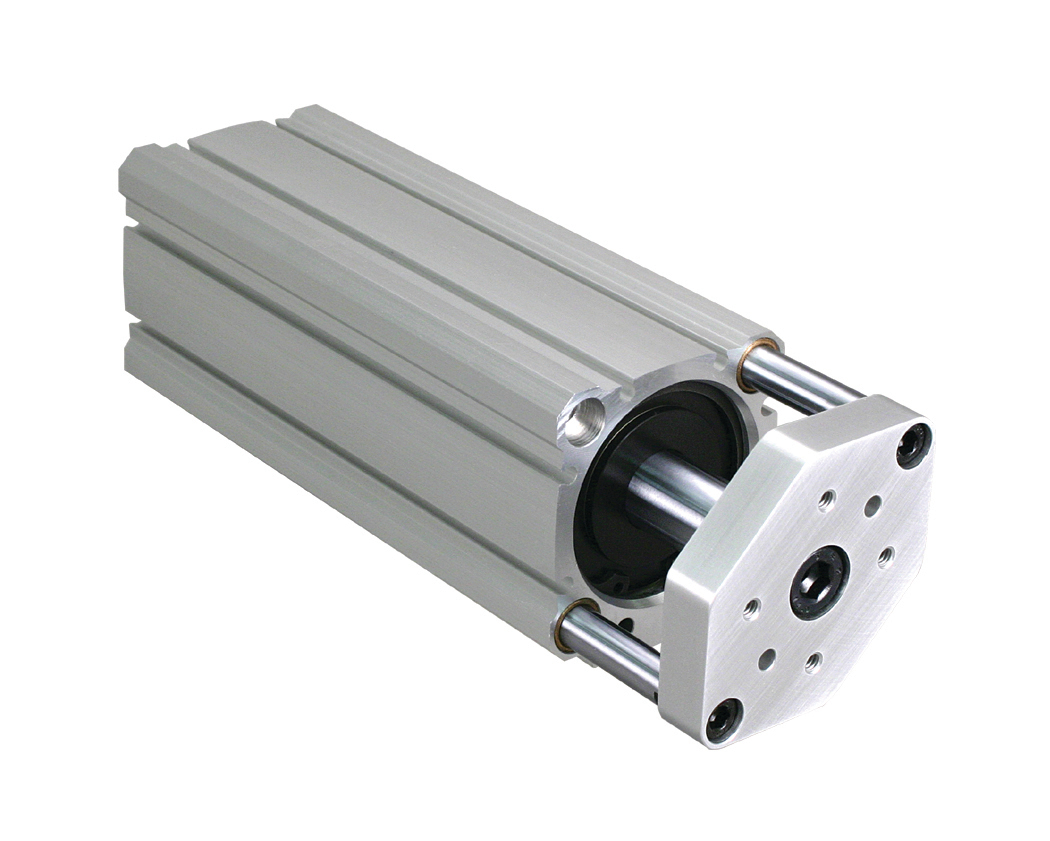

Series CTS Guided Pneumatic Compact Cylinder

Series CTS Guided Pneumatic Compact Cylinder

  • Compact design for applications where space is limited
  • Hard chrome plated guide shafts for anti-rotation and increased side load capacity
  • Oil-impregnated bronze bushings for long cylinder life


Series CV Pneumatic ISO Cylinder

Series CV Pneumatic ISO Cylinder

  • Quiet operation
  • Higher velocity and higher kinetic energy absorption
  • Multi-purpose impact seals and urethane seals
  • Longer nose bushings
  • Polymer rod bearing

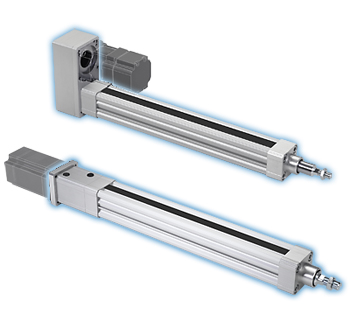

Series ECV Ball Screw Electric Cylinder

Series ECV Ball Screw Electric Cylinder

  • ECVA provides a non-rotating rod design, and the ECVR features a rotating rod for applications where rod rotation is prevented by the attached load or tooling
  • Rigid construction, high degree of repeatability, and high precision ball screw assemblies
  • Your Motor Your Way for online configuration of motor mounting plates

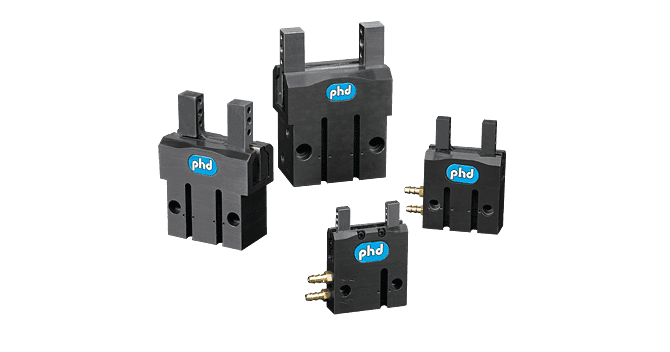

Series GRA Parallel Pneumatic Micro Gripper

Series GRA Parallel Pneumatic Micro Gripper

  • Compact size
  • Manifold porting
  • Internal speed control

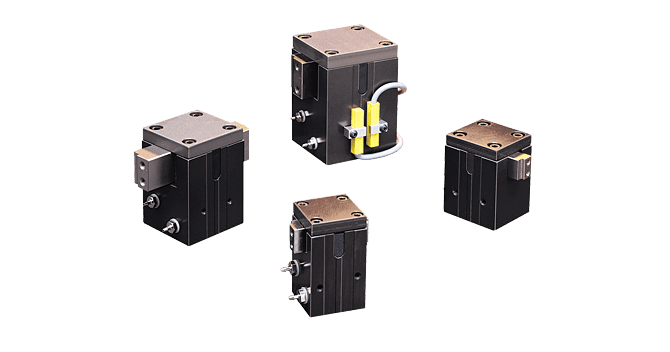

Series GRD Parallel Pneumatic Miniature Gripper

Series GRD Parallel Pneumatic Miniature Gripper

  • Very high grip force to weight ratio for efficient use of space and power
  • Fully field-repairable
  • True parallel jaw travel for easy tooling design

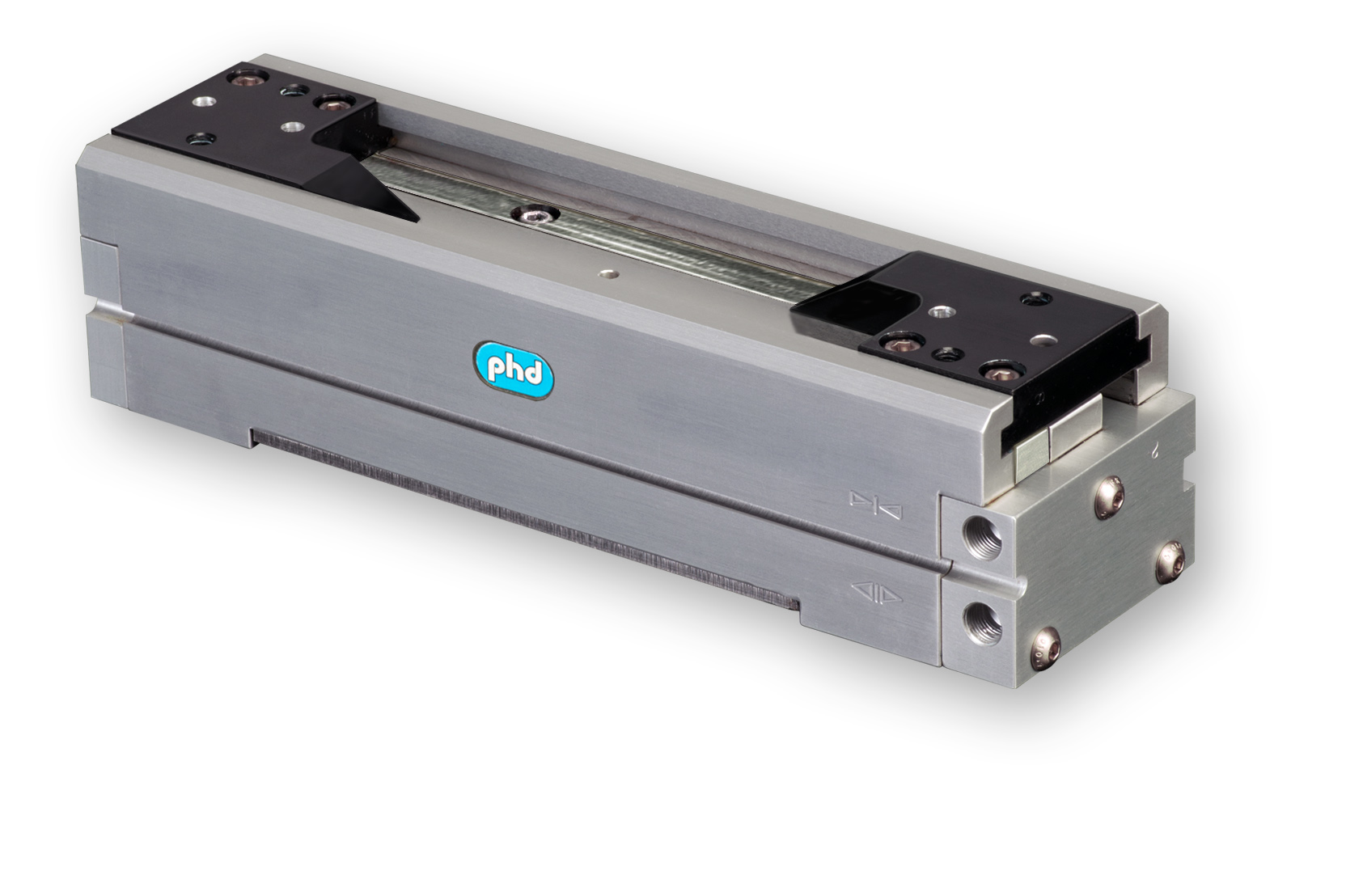

Series GRH Parallel Pneumatic Long Travel Gripper

Series GRH Parallel Pneumatic Long Travel Gripper

  • Corrosion-resistant and robust construction ensures long operating life
  • Dual bore provides higher total grip force
  • Extended support guide system with wide slot jaws minimizes tooling deflection when gripping


Series GRK Parallel Pneumatic Heavy Duty Gripper

Series GRK Parallel Pneumatic Heavy Duty Gripper

  • Compact, low profile design provides high grip force and large moment capacities with low overall weight
  • True parallel jaw motion simplifies jaw tooling and is ideal for centering parts of various sizes
  • Two grip force/jaw travel combinations available for each size
  • Wear compensation jaw guide system

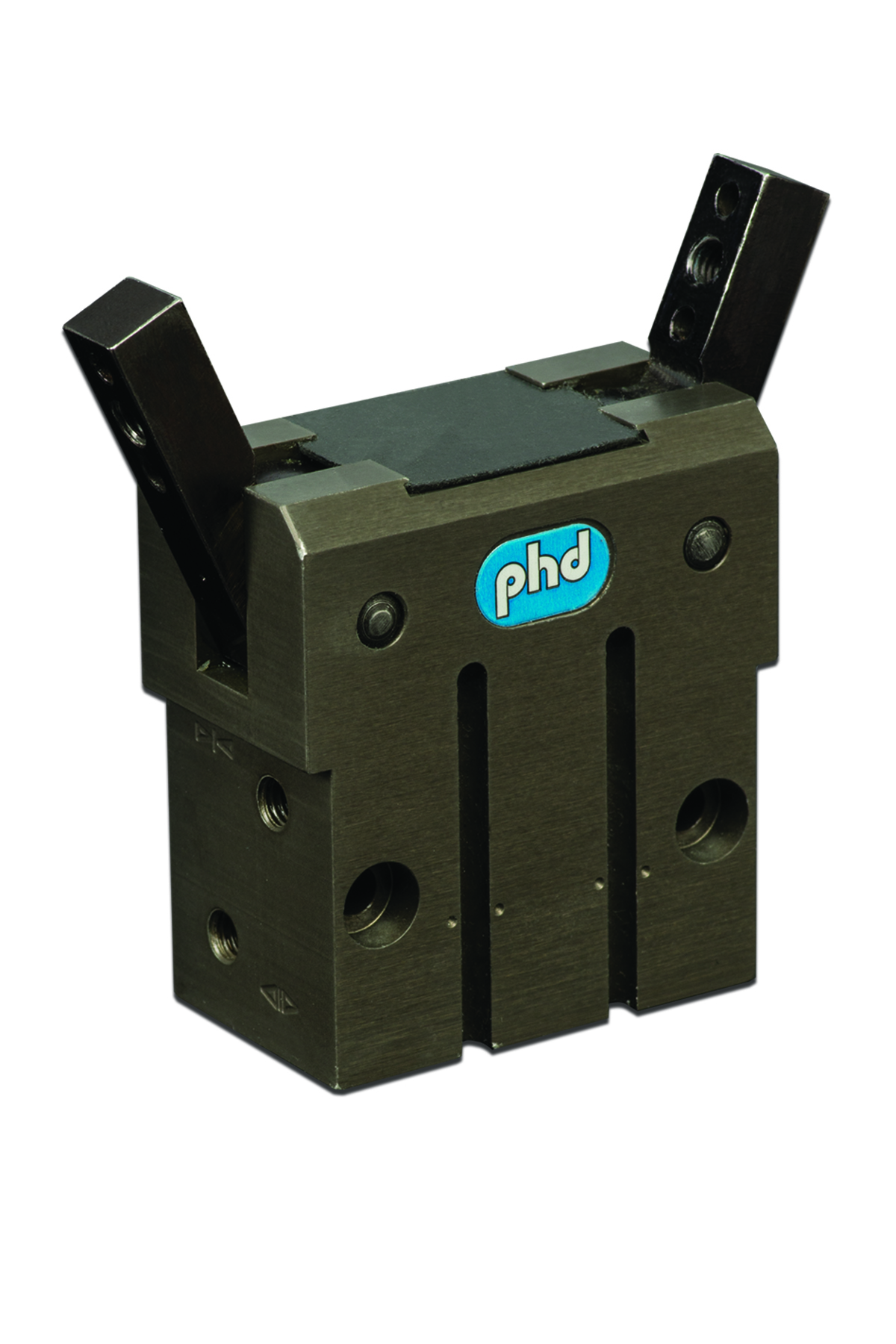

Series GRV Angular Pneumatic Micro Gripper

Series GRV Angular Pneumatic Micro Gripper

  • Robust construction to ensure long operating life
  • Precision dowel pin holes ensure accurate alignment of tooling and gripper mounting
  • Standard internal speed control with no external flow control required


Series GRW Wide Body Pneumatic Parallel Gripper

Series GRW Wide Body Pneumatic Parallel Gripper

  • Large diameter jaw guides provide superior jaw stability and high moment capacities
  • Optional manifold porting available on either of the two standard mounting surfaces
  • Fully field-repairable and in available in five sizes, both imperial and metric versions

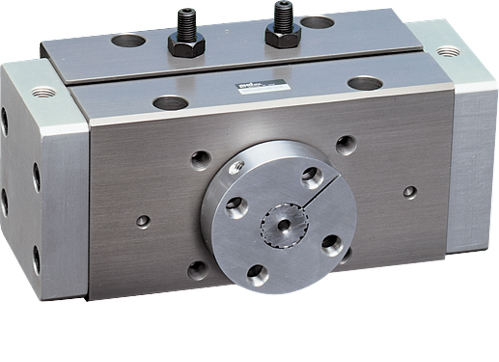

Series RA High Load Pneumatic Rotary Actuator

Series RA High Load Pneumatic Rotary Actuator

  • Full featured rotary
  • High axial and radial bearing loads
  • Zero backlash at ends of rotation


Series RIS High Force Pneumatic Rotary Actuator

Series RIS High Force Pneumatic Rotary Actuator

  • High torque
  • High axial and radial bearing load
  • Thru hole shaft for built-in air communication ports

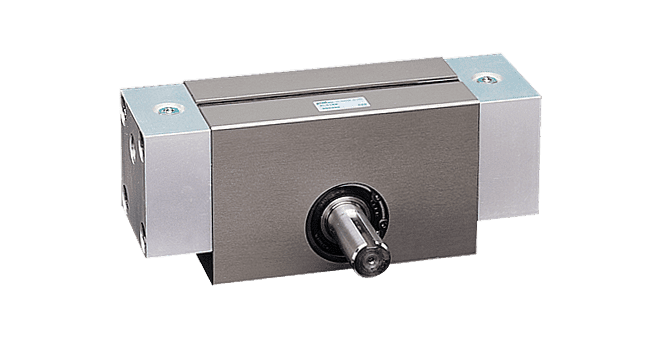

Series RL Compact Pneumatic Rotary Actuator

Series RL Compact Pneumatic Rotary Actuator

  • Low cost OEM style rotary
  • High axial and radial bearing load
  • High torque/package size

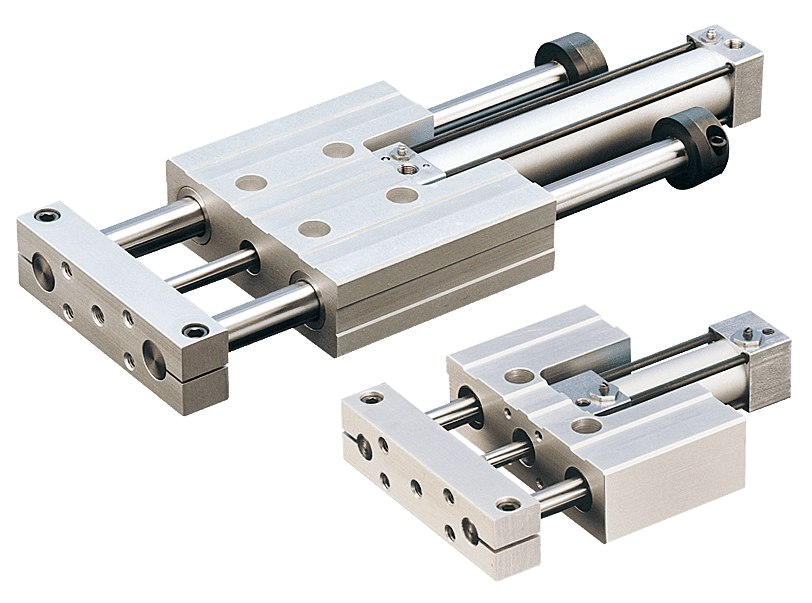

Series SD/SE Versatile Thruster Pneumatic Slide

Series SD/SE Versatile Thruster Pneumatic Slide

  • Offered in short or long body in five bore sizes
  • Available with standard or oversize shafts
  • Standard dowel pin holes for ease of mounting


Series SFM Multi-Position Rodless Gantry Rail Pneumatic Slide

Series SFM Multi-Position Rodless Gantry Rail Pneumatic Slide

  • Modular multi-position stop system includes optional mid-stop actuator and adjustable end stop to support diverse applications
  • Multiple intermediate stopping positions are available, limited only by the length of the slide
  • Ground rail technology


Series SFP Rodless Gantry Rail Pneumatic Slide

Series SFP Rodless Gantry Rail Pneumatic Slide

  • Long travel lengths
  • Space-saving design
  • High load capacity, very low deflection
  • Interanl ground rail technology


Series SK/SL Robust Versatile Thruster Pneumatic Slide

Series SK/SL Robust Versatile Thruster Pneumatic Slide

  • Offered in short or long body with five bore sizes
  • Available with standard or oversize shafts
  • Standard dowel pin holes for ease of mounting
  • Choice of bearings


Series STP Compact Rail Thruster Pneumatic Slide

Series STP Compact Rail Thruster Pneumatic Slide

  • Smooth, precise linear motion
  • High capacity
  • Dual bore for added loaded capability
  • Ground rail technology


Series SxL/SxH Compact Thruster Pneumatic Slide

Series SxL/SxH Compact Thruster Pneumatic Slide

  • 9 bore sizes
  • Corrosion-resistant options
  • Twin switch slots for flush switch mounting
