Metal Stamping Equipment

    Equipment including frame clamps, toggle clamps, and shot pin cylinders are offered for the metal stamping industry to produce body panels, frames, and other components formed from sheet metal.

    High Temperature Clamp

    High Temperature Clamp - C4225

    • High performance at 250°F (121°C)
    • Spring close, pneumatic open
    • Special seals and lube protect clamp from elevated temperature
    • Elongated tips for part stability
    High Temperature Clamp

    High Temperature Clamp - C4556

    • High performance at temps exceeding 1700°F (927°C)
    • Rear manifold moves plumbing away from heat source
    • Heat dissipating shields minimize radiant heat
    • Specially coated tips to reflect heat

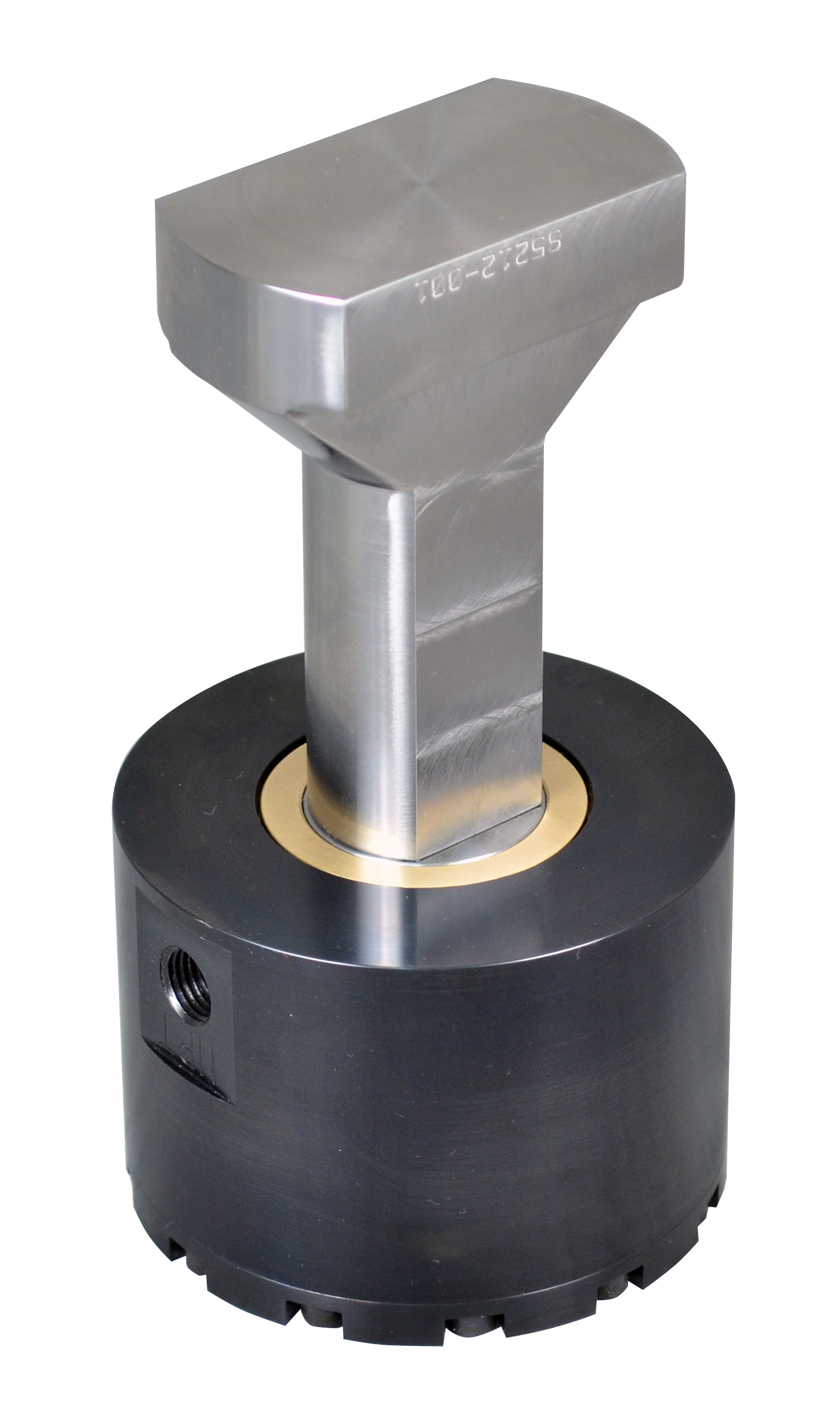

    Hydraulic Die Retention Cylinder

    Hydraulic Die Retention Cylinder

    • Drop-in replacement
    • Field repairable, increases value and provides longer life
    • PHD offers rebuild program providing same warranty as new unit
    magnetic gripper

    Magnetic Gripper - Model 86560

    • No expensive tooling
    • Variability of part pick up
    • No electric lines required
    Series GRM Clamp with High Temperature Options

    Series GRM Clamp with High Temperature Options

    • Superior delivery
    • Seals and lube rated to 200°C (392°F)
    • Ceramic coated tips minimize thermal transfer
    Series GRM Pneumatic Clamp with Piggy Back Cylinder - C4400

    Series GRM Pneumatic Clamp with Piggy Back Cylinder - C4400

    • Sliding jaw tooling to stretch material as it is gripped
    • Built upon standard GRM Clamp technology
    • Open/close sensing
    Series GRM Pneumatic Workholding Clamp

    Series GRM Pneumatic Workholding Clamp

    • Highly modular design for countless configurations
    • Jaws lock in the closed position to ensure part retention
    • Superior delivery on standard models
    Series PA Pneumatic Swing Clamp

    Series PA Pneumatic Swing Clamp

    • Three-ball helix design distributes external loads
    • Compact sizes maximize available work space
    • Superior delivery
    Series PB Versatile Pneumatic Swing Clamp

    Series PB Versatile Pneumatic Swing Clamp

    • Available in 25 to 50mm bores
    • Short and long strokes for design flexibility
    • Drop-in replacement for competitive models
    • Patented options maximize performance
    Series PEC Pneumatic Toggle Clamp

    Series PEC Pneumatic Toggle Clamp

    • Widest clamp force range in the industry
    • Constant clamp force compared to toggle designs
    • Locks closed to ensure part retention
    Series PFC Pneumatic Frame Clamp

    Series PFC Pneumatic Frame Clamp

    • Long or wide jaws for design flexibility
    • Constant clamping force over wide range
    • Optional weld covers for protection
    Series PFC Pneumatic Frame Clamp - Mongo

    Series PFC Pneumatic Frame Clamp - Mongo

    • Up to 52,000 lbs of total clamp force
    • High-force forming clamp
    • Long jaw travel positioning clamp
    • Ideal for large part applications
    Series PHL Heavy Duty Pneumatic Lifter Slide

    Series PHL Heavy Duty Pneumatic Lifter Slide

    • Drop-in replacements for competitive models
    • Replaceable bearings
    • Multiple strokes and options available
    Series PNC Pneumatic Identification Stamping Clamp

    Series PNC Pneumatic Identification Stamping Clamp

    • Cost effective solution to comparable products
    • Quiet operation
    • Up to 26,000 pounds of total clamp force
    • Stamps characters into draw quality steel
    Series PNC Pneumatic Identification Stamping Clamp - Mongo

    Series PNC Pneumatic Identification Stamping Clamp - Mongo

    • Up to 60,000 lbs of total clamp force
    • Stamping and crimping opportunities for many material types
    • Economical solution to comparable hydraulic and laser marking systems
    Series PSP Pneumatic Shot Pin Cylinder

    Series PSP Pneumatic Shot Pin Cylinder

    • Adjustable bearing system can be used to make worn-in units "like new"
    • Internal porting and shock absorption eliminates the need to adjust cushions or flow controls
    • Superior off-center part locating and positioning
    Series RA High Load Pneumatic Rotary Actuator

    Series RA High Load Pneumatic Rotary Actuator

    • High axial and radial bearing loads
    • Zero backlash at ends of rotation
    • Wide variety of options and accessories
