Medical Manufacturing Equipment

    Medical Manufacturing Equipment - PHD offers FDA-approved standard and unique components with high-precision, compact designs for manufacturing syringes, tubing, IV bags, lab testing, pharmacy, orthopedics, and more for hospitals, laboratories, and pharmaceutical markets.

    Angular Gripper - ML307584

    Angular Gripper - ML307584

    • Direct replacement for competitor unit, with unique jaws
    • Hardcoated body
    • Stainless steel jaws
    Burp Slide - ML303439

    Burp Slide - ML303439

    • Used to burp air out of IV bag
    • Stainless steel plugs, guideshafts, and rod seal retainer
    • PET plastic rod bushing and 303 stainless steel piston
    • Fluoro-elastomer seals, rod and guideshaft scrapers
    Corrosion-Resistant Slide - ML307246

    Corrosion-Resistant Slide - ML307246

    • Hard anodized PFTE aluminum for maximum corrosion-resistance
    • Large guide shafts
    • Long life
    • Field repairable
    Electric Long Travel Gripper - ML309746

    Electric Long Travel Gripper - ML309746

    • 70mm jaw travel
    • Open motor architecture
    • Small, compact design
    Electric Plastic Gripper - ML211729

    Electric Plastic Gripper - ML211729

    • Built-in motor
    • 19mm jaw travel
    • Stainless steel fasteners
    • Made from PET plastic
    Electric Rail Gripper - ML310629

    Electric Rail Gripper - ML310629

    • Open motor architecture
    • Switch ready
    • 30 lbf grip force at surface of jaw
    Electric Variable Pick Head - ML306008

    Electric Variable Pick Head - ML306008

    • Ideal for final packaging process
    • Motor driven pitch
    • Seven vertical pneumatic actuators
    Long Travel Gripper - ML307562

    Long Travel Gripper - ML307562

    • PET body
    • Stainless steel jaws
    • Direct replacement for competitor unit
    • Overwrapping of IV bags
    PET Plastic Gripper with Stainless Jaws - ML300263

    PET Plastic Gripper with Stainless Jaws - ML300263

    • Passivated stainless jaws for improved attachment of tooling
    • Designed for part production in a deionized water and/or high moisture environment
    • Parallel jaw motion is ideal for gripping parts of various sizes
    Parallel Gripper - ML308454

    Parallel Gripper - ML308454

    • Direct replacement for competitor unit
    • PET body
    • Stainless steel jaws
    Plastic Angular Gripper - ML301141

    Plastic Angular Gripper - ML301141

    • PET plastic body and aluminum jaws
    • Deionized water environment
    • Single acting
    Plastic Cylinder - ML308000

    Plastic Cylinder - ML308000

    • FDA-approved material
    • Stainless steel hardware/fasteners
    • Low breakaway
    Plastic Slide - ML307784

    Plastic Slide - ML307784

    • FDA-approved material
    • Harsh environment capabilities
    • Dual-bore high thruster slide
    Series 160 Double Rod Pneumatic Escapement

    Series 160 Double Rod Pneumatic Escapement

    • Ideal for isolating and feeding individual parts from vibratory feeders, magazines, hoppers, or conveyors
    • Internally ported design requires only one 4-way valve
    Series 8400 Micro Pneumatic Angular Gripper

    Series 8400 Micro Pneumatic Angular Gripper

    • Compact size
    • Double acting - internal/external gripping
    • Cost effective
    Series A, AV, HV Tie Rod Hydraulic & Pneumatic Cylinders for NFPA Cleanroom

    Series A, AV, HV Tie Rod Hydraulic & Pneumatic Cylinders for NFPA Cleanroom

    • Wide range of options and sizes makes it fast and easy to select a cylinder to fit your application
    • Vacuum port
    • Special bushing to minimize particle contamination
    Series CR Pneumatic Compact Cylinder

    Series CR Pneumatic Compact Cylinder

    • Short cylinder length
    • Up to six switch slots for flush switch mounting
    • Long life piston seal for long cylinder life
    • Multiple mounting options
    Series CTS Guided Pneumatic Compact Cylinder

    Series CTS Guided Pneumatic Compact Cylinder

    • Special piston and rod for micrometer adjustability
    • Designed for long life
    • Non-rotating rods added
    Series ESG Electric Gantry Slide

    Series ESG Electric Gantry Slide

    • Superior speeds, thrust, and travel lengths
    • Replacement for pneumatic VDMA/ISO cylinder
    • Rigid construction with low backlash
    • Open motor architecture
    Series ESK/ESL Electric Thruster Slide

    Series ESK/ESL Electric Thruster Slide

    • Superior speeds, thrust, and travel lengths
    • Offered in long and short bodies
    • Open motor architecture
    Series GRA Parallel Pneumatic Micro Gripper

    Series GRA Parallel Pneumatic Micro Gripper

    • Compact size
    • Manifold porting
    • Internal speed control
    Series GRF MRO Pneumatic Parallel Gripper

    Series GRF MRO Pneumatic Parallel Gripper

    • MRO drop-in replacement for competitor unit
    • Available in 4 sizes with high grip force
    • Two jaw travels and two jaw styles
    Series GRS Low Profile Pneumatic Parallel Gripper - ML306058

    Series GRS Low Profile Pneumatic Parallel Gripper - ML306058

    • Purge/scavenge port for extreme environments
    • Smooth operation and minimal jaw play
    • Low profile
    Series GRT Parallel Pneumatic 3-Jaw Gripper

    Series GRT Parallel Pneumatic 3-Jaw Gripper

    • 3-jaw design provides self-centering and maximum contact between part and jaw tooling
    • 8 sizes available
    • Field-tested for over 10 million cycles

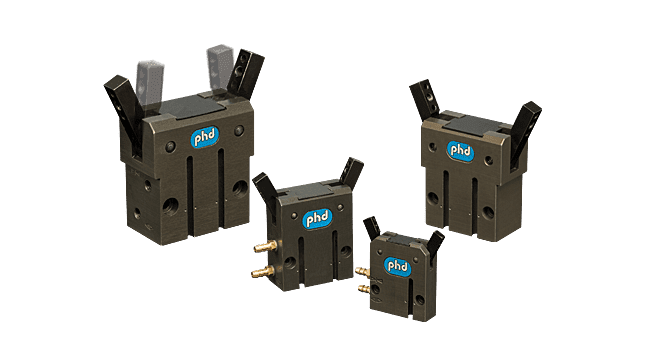

    Series GRV Angular Pneumatic Micro Gripper

    Series GRV Angular Pneumatic Micro Gripper

    • Robust construction to ensure long operating life
    • Precision dowel pin holes ensure accurate alignment of tooling and gripper mounting
    • Standard internal speed control with no external flow control required
    Series PA Pneumatic Swing Clamp

    Series PA Pneumatic Swing Clamp

    • Compact and available in 5 sizes
    • Left and right rotations
    • Multiple mounting surfaces
    • Steel and copper arms
    Series RA High Load Pneumatic Rotary Actuator

    Series RA High Load Pneumatic Rotary Actuator

    • Zero backlash
    • High axial and radial bearing
    • Wide variety of options and accessories
    Series RCC Cable-Driven Pneumatic Rotary Actuator

    Series RCC Cable-Driven Pneumatic Rotary Actuator

    • Low cost
    • Compact size
    • Low profile
    • High thrust loads
    Series RFS Low Profile Pneumatic Rotary Actuator

    Series RFS Low Profile Pneumatic Rotary Actuator

    • Compact size
    • Low profile
    • High thrust loads
    Series RL Compact Pneumatic Rotary Actuator

    Series RL Compact Pneumatic Rotary Actuator

    • Low cost
    • High axial and radial bearing load
    • High torque/compact size
    Series SAH Compact Thruster Pneumatic Slide - ML308918

    Series SAH Compact Thruster Pneumatic Slide - ML308918

    • Drop-in replacement for competitor unit
    • Incorporates twin switch slots for flush switch mounting
    • Customized tool plate for ease of tool mounting
    Series SFP Rodless Gantry Rail Pneumatic Slide

    Series SFP Rodless Gantry Rail Pneumatic Slide

    • Low deflection and high moment capacity
    • Smooth, precise movement
    • Rodless cylinder
    Series SHP Miniature Rail Thruster Pneumatic Slide

    Series SHP Miniature Rail Thruster Pneumatic Slide

    • Compact size
    • Precision rail bearing technology
    • Multiple mounting surfaces
    Series SIP Low Profile Miniature Rail Thruster Pneumatic Slide

    Series SIP Low Profile Miniature Rail Thruster Pneumatic Slide

    • Compact size
    • Precision rail bearing technology
    • Multiple mounting surfaces
    Series STP Compact Rail Thruster Pneumatic Slide

    Series STP Compact Rail Thruster Pneumatic Slide

    • Smooth, precise linear motion
    • High capacity
    • Dual bore for added loaded capability
    Series TD Air/Oil Tandem Tie Rod Cylinder

    Series TD Air/Oil Tandem Tie Rod Cylinder

    • Precise speed control operation at low velocities
    • Long life design for low maintenance
    • NFPA repairable for extended life
    Specialty Surgery Tool Cylinder - ML310635

    Specialty Surgery Tool Cylinder - ML310635

    • Special piston and rod for micrometer adjustability
    • Designed for long life
    • Non-rotating rod
    • Used for highly accurate measurements in surgery
    Stainless Steel/PET Gripper - ML302657

    Stainless Steel/PET Gripper - ML302657

    • Designed for chlorine solution
    • Stainless steel jaws
    • PET body
    • Fluoro-elastomer seals
    Three Position Bio Plater Gripper - ML308123

    Three Position Bio Plater Gripper - ML308123

    • Three positions with only two air lines
    • No springs
    • Lightweight and compact
    • Equivalent 12mm bore grip forces
    Three Position Gripper - ML308248

    Three Position Gripper - ML308248

    • Compact size with high precision
    • Three-position with single 2-way valve for all positions
    • Long travel with high load capacity
    • Low operation of pressure
