Industrial Printing Equipment

    Industrial Printing Equipment - whether your application features low to medium volume of sheet fed printers or high volume web printers, PHD has solutions to increase your printing productivity from paper handling to press to bindery and packaging.

    Blanket Wash Cylinder - ML310456

    Blanket Wash Cylinder - ML310456

    • Drop-in replacement for a Heidelberg blanket wash cylinder
    • Rod can be on either side
    • Long life seals and bushings

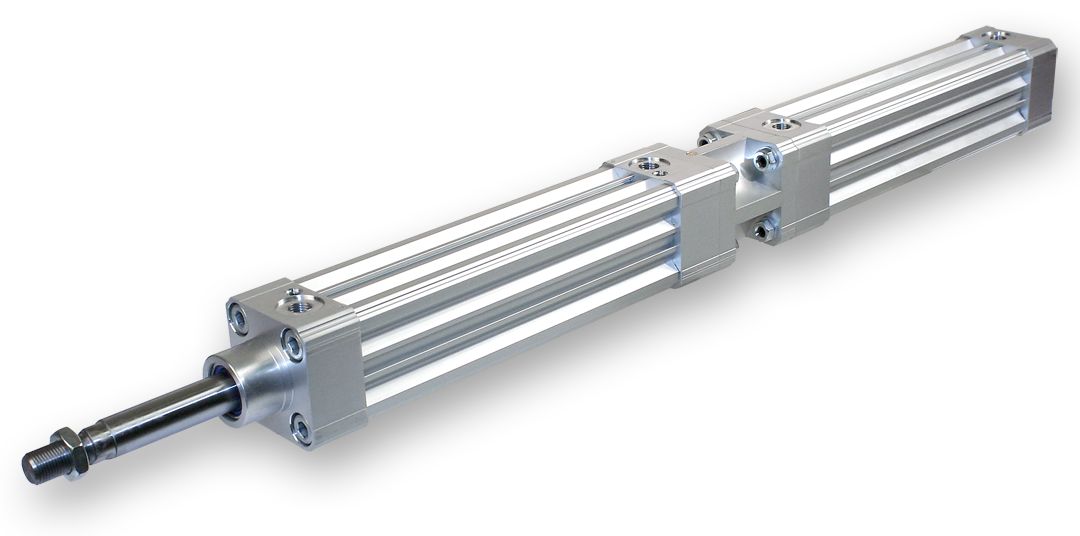

    Chain Tension Cylinder - ML309911

    Chain Tension Cylinder - ML309911

    • Drop-in replacement for a Univer K200-050-0200 FM unit
    • Constructed with Series CV Pneumatic ISO Cylinders
    • Double power
    Chock Lock Cylinder - ML305875

    Chock Lock Cylinder - ML305875

    • Long life design for low maintenance
    • Custom mount flange
    • Field repairable
    Cover Deck Latch Escapement - ML308969

    Cover Deck Latch Escapement - ML308969

    • Allows selected book cover to go into binder
    • Reduces repair inventory
    • Installs easily with all necessary fittings, tubing, and valve included
    Gate Cylinder - Back-to-Back AV2 Cylinder

    Gate Cylinder - Back-to-Back AV2 Cylinder

    • Operates the dryer door
    • Drop-in for Tec Dryer Series 80 unit
    • Field repairable
    Impression Cylinder - ML310417

    Impression Cylinder - ML310417

    • Drop-in replacement for a Speedmaster Heidelberg press unit
    • Back-to-back
    • Long life and consistent response speed
    Impression Roll Actuator - ML310595

    Impression Roll Actuator - ML310595

    • Drop-in replacement for Rotoman unit
    • Long life and consistent speed
    • Back-to-back
    Pocket Latch Cylinder - ML309302 & ML309303

    Pocket Latch Cylinder - ML309302 & ML309303

    • Drop-in replacement for Heidelberg P15 perfect binder unit
    • Actuates the bindery pocket
    • Long life and consistent speed

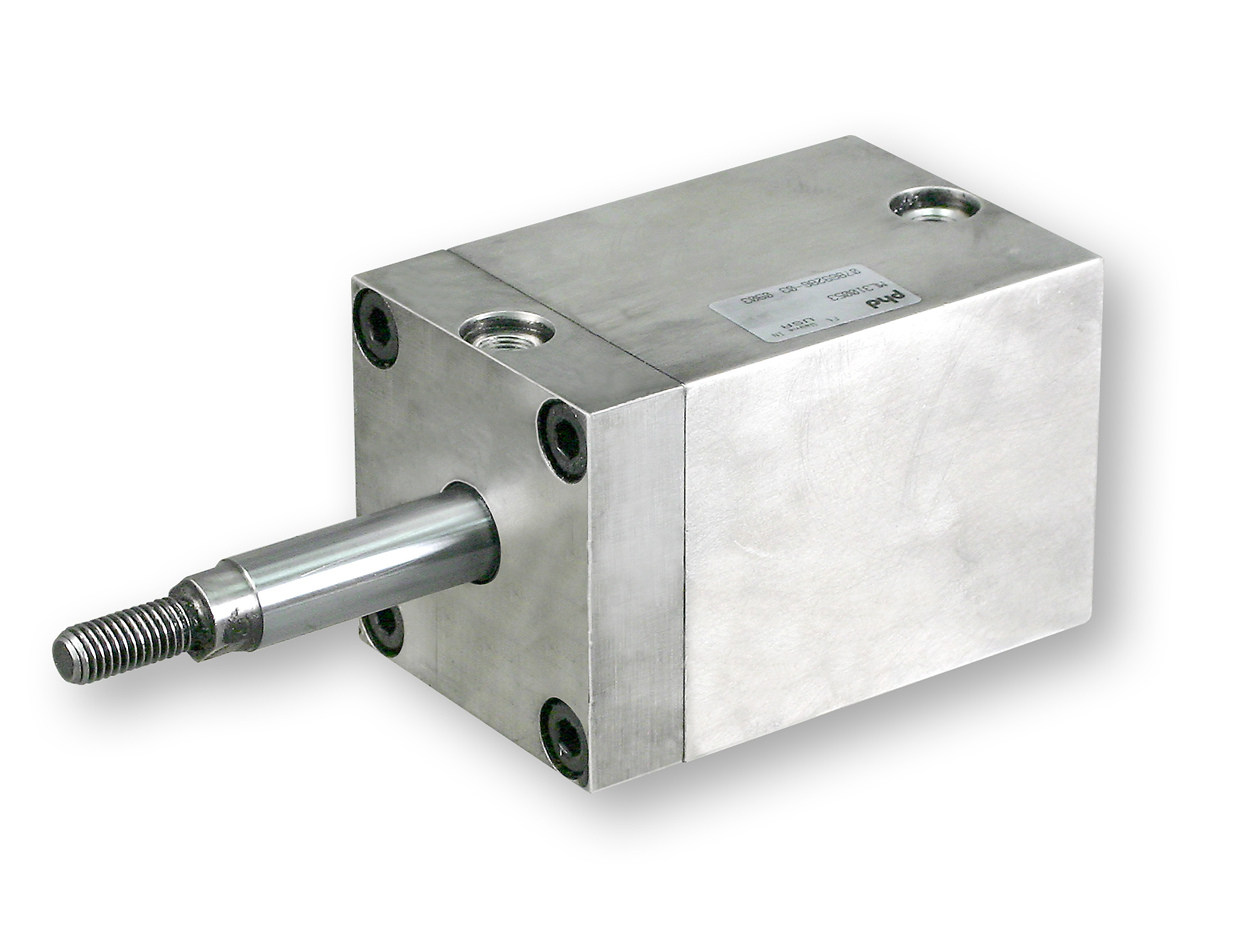

    Press Cylinder - ML310053

    Press Cylinder - ML310053

    • Drop-in replacement for MAN Roland press cylinder
    • Long life bushing and wiper seal
    Pusher Cylinder on Stacker - ML 308995

    Pusher Cylinder on Stacker - ML 308995

    • Extends to push finished, stacked, and banded magazines onto conveyor
    • PFTE Wear Ring provides piston support and enhances durability
    • Long life and consistent speeds

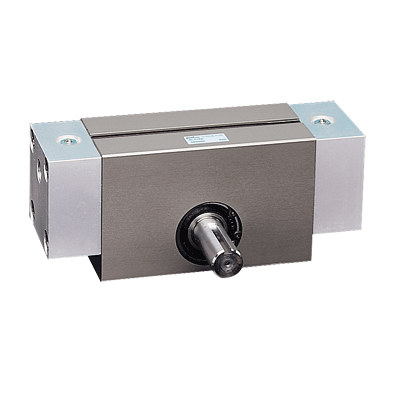

    Rotary Actuator for Labeling Machines - ML#310193

    Rotary Actuator for Labeling Machines - ML#310193

    • Used to retract the glue pot on numerous labeling machines
    • Unique mounting holes added to the output shaft
    • Long life

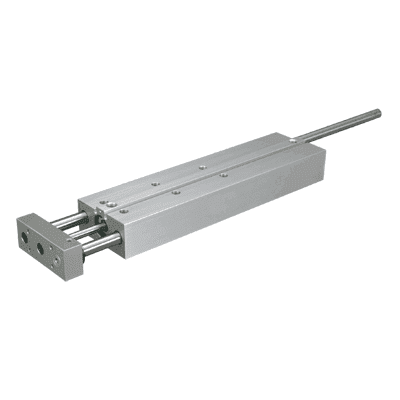

    Tamp Slide - ML306429

    Tamp Slide - ML306429

    • Cylinder with built-in vacuum chamber
    • Extra long bearings on front of slide for increased support
    • Used for tamping and blow off release of labels

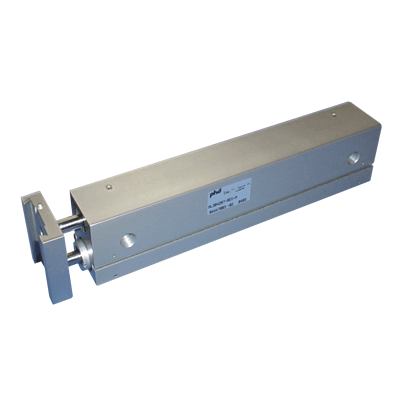

    Tamp Slide with Dove Tail Tool Plate - ML304287

    Tamp Slide with Dove Tail Tool Plate - ML304287

    • Built-in guide shafts and bearing support eliminates need for external guides, reduces twist at end of stroke, and provides greater stability
    • Dove tail tool plate design provides ease of attaching existing pads
    • Eliminates exterior vacuum lines with built-in vacuum port

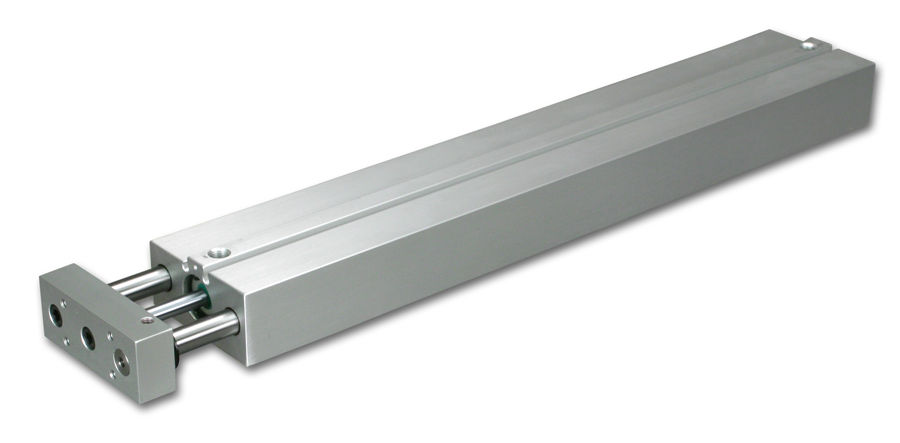

    Tamp Slide with Long Stroke - ML307268

    Tamp Slide with Long Stroke - ML307268

    • Built-in guide shafts and bearing support eliminates need for external guides, reduces twist at end of stroke, and provides greater stability
    • Switch mounting simplifies switch assembly and adjustment
    • Eliminates exterior vacuum lines with built-in vacuum port
    Universal Blanket Wash Cylinder - ML311719

    Universal Blanket Wash Cylinder - ML311719

    • Universal mounting holes
    • Rod can be on either side
    • Long life seals and bushings

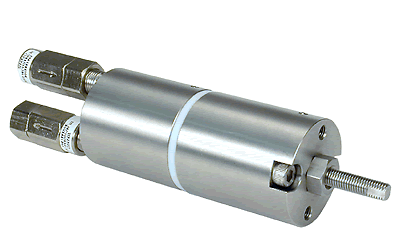

    Volumetric Pump - ML302807

    Volumetric Pump - ML302807

    • Stainless steel for corrosion resistance
    • Adjustment screw for volume adjustment
    • Additional quad seal for added sealing protection
