Workholding Equipment

    Workholding Equipment - reducing production downtime and costs is important, and PHD has many solutions offered for workholding applications. PHD clamps provide superior workholding and transferring for assembly and welding environments.

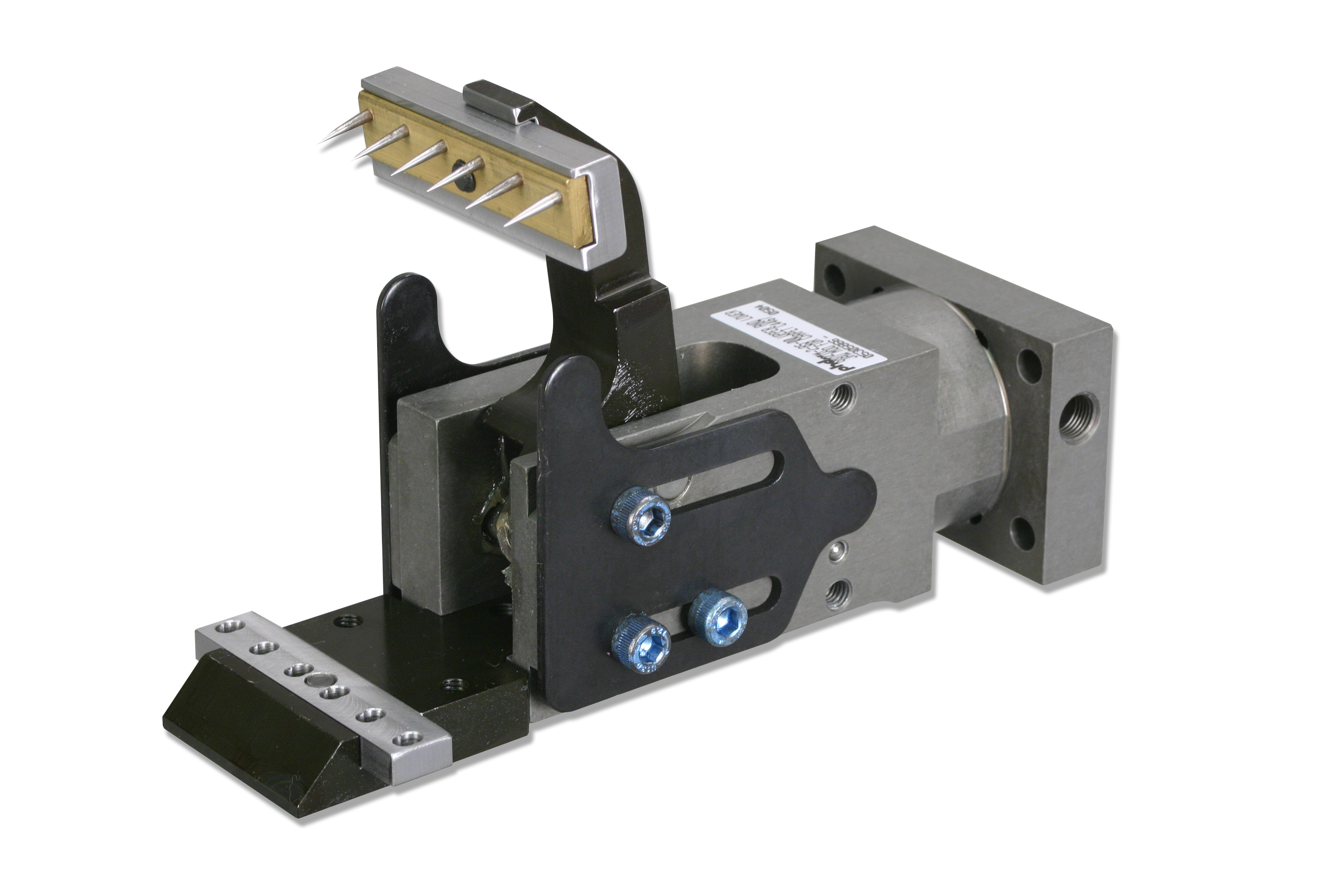

    Carpet Stretching and Molding Clamp - C4511

    Carpet Stretching and Molding Clamp - C4511

    • Simple design, long life, high clamp force, and fast field maintenance
    • Multiple jaw configurations and tips are available to fit your applications requirements
    • The jaws of the Series GRM Clamp lock in the closed position ensuring part retention if air pressure is lost due to line rupture or power loss

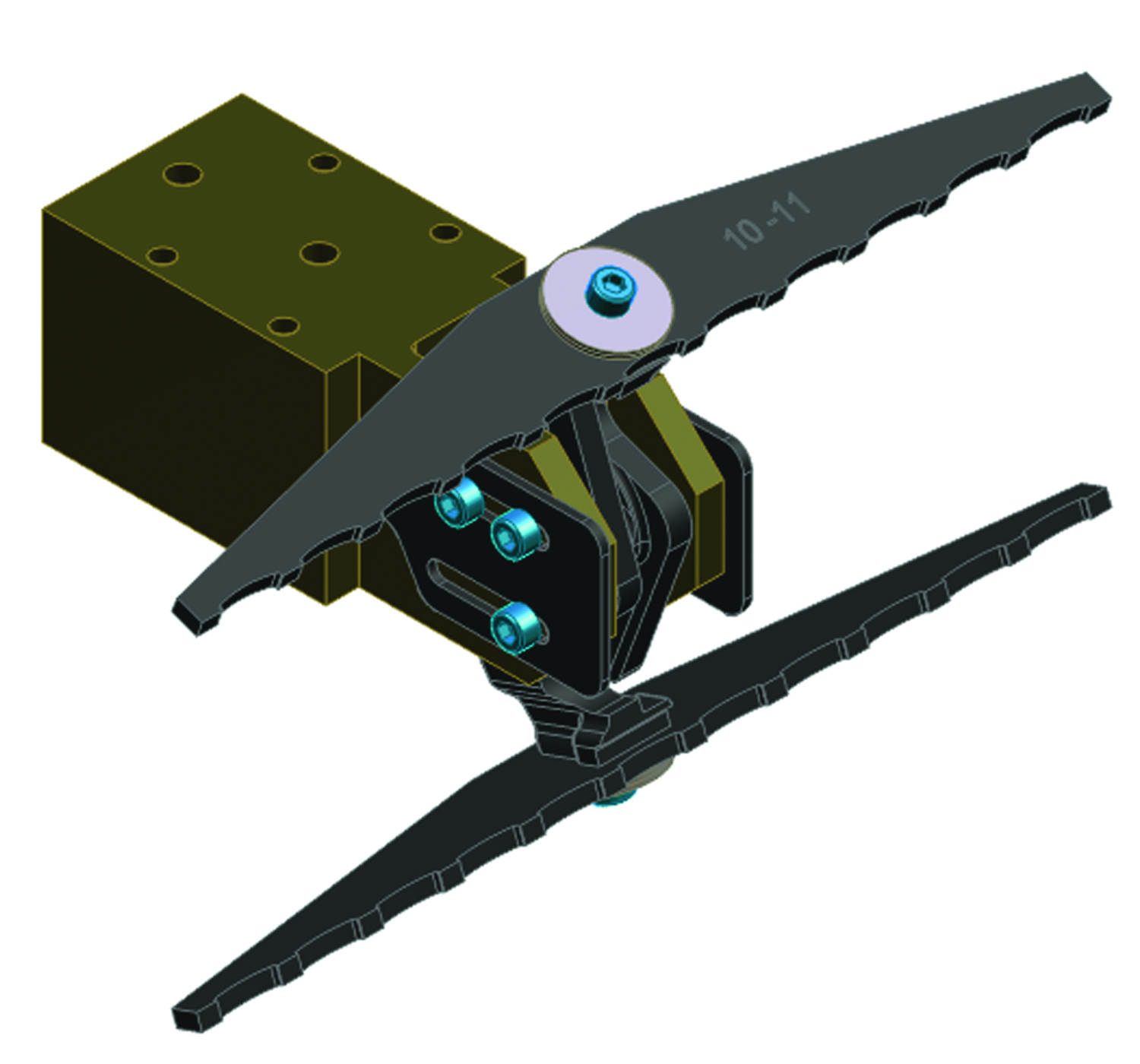

    High Temperature Clamp - C4225

    High Temperature Clamp - C4225

    • High performance at 250°F (121°C)
    • Spring close, pneumatic open
    • Special seals and lube protect clamp from elevated temperatures
    • Elongated tips for part stability

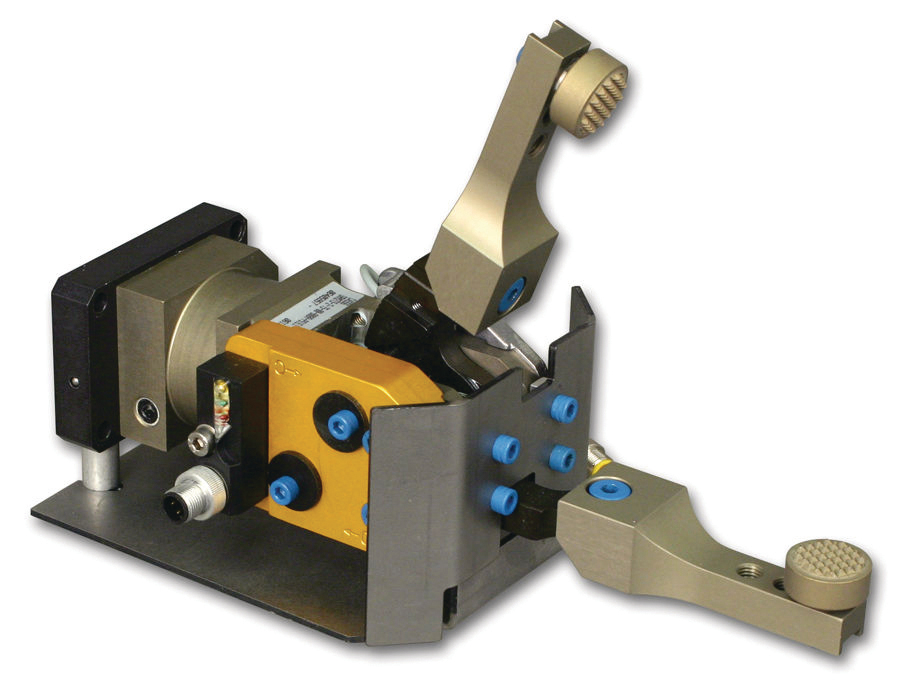

    High Temperature Clamp - C4556

    High Temperature Clamp - C4556

    • High performance at temps exceeding 1700°F (927°C)
    • Rear manifold moves plumbing away from heat source
    • Heat dissipating shields minimize radiant heat
    • Specially coated tips to reflect heat
    Series GRM Clamp with High Temperature Options

    Series GRM Clamp with High Temperature Options

    • Superior delivery
    • Seals and lube rated to 200°C (392°F)
    • Ceramic coated tips minimize thermal transfer
    Series GRM Pneumatic Workholding Clamp

    Series GRM Pneumatic Workholding Clamp

    • Highly modular design for countless configurations
    • Jaws lock in the closed position to ensure part retention
    • Superior delivery on standard models
    Series OCK Clamping Cylinder

    Series OCK Clamping Cylinder

    • Standard flow controls for easy speed adjustment
    • Standard magnet for sensing capabilities
    • Multiple port locations for installation flexibility
    • Mounting matches global standard

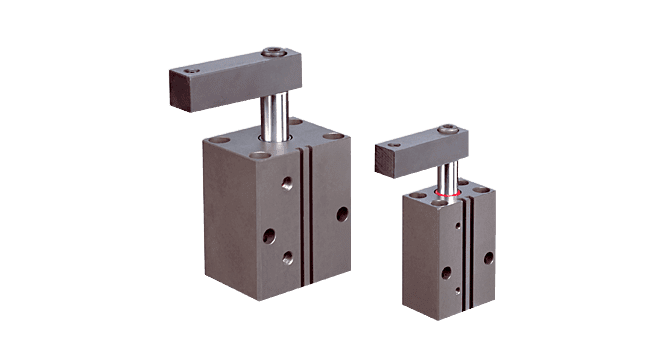

    Series PA Pneumatic Swing Clamp

    Series PA Pneumatic Swing Clamp

    • Used to hold components together for a robotic welding process
    • Simple design, compact size for low weight, long life, and high clamp force
    • Mounting patterns on many surfaces provide flexibility in clamp mounting

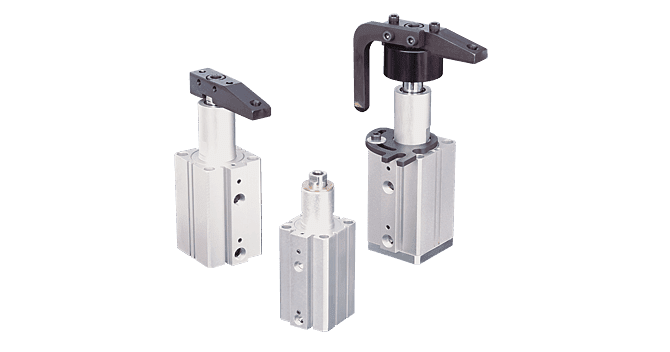

    Series PB Versatile Pneumatic Swing Clamp

    Series PB Versatile Pneumatic Swing Clamp

    • Used to fixture components together in robotic welding applications
    • Simple design, compact size for low weight, long life, and high clamp force
    • MRO drop-in replacement for competitive models

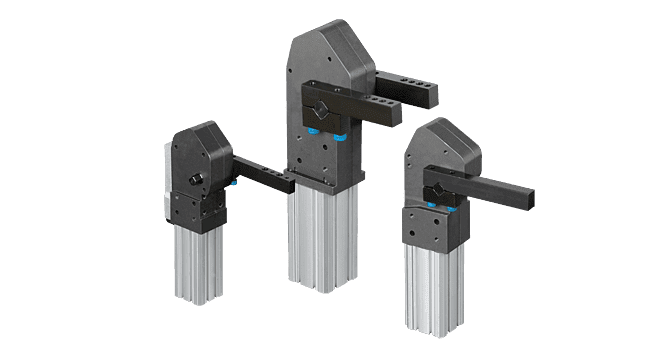

    Series PEC Pneumatic Toggle Clamp

    Series PEC Pneumatic Toggle Clamp

    • Used to fixture and hold parts together in high speed robotic welding applications
    • Superior cam design mechanism ensures part retention if air pressure is lost
    • Enclosed design prevents particles and weld slag from entering

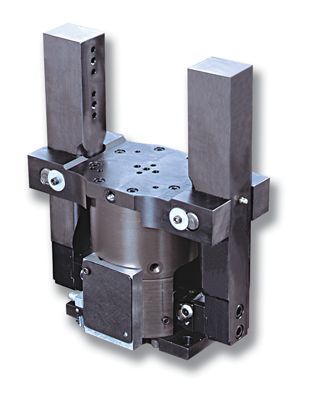

    Series PFC Pneumatic Frame Clamp

    Series PFC Pneumatic Frame Clamp

    • Long or wide jaws for design flexibility
    • Constant clamping force over wide range
    • Optional weld covers for protection

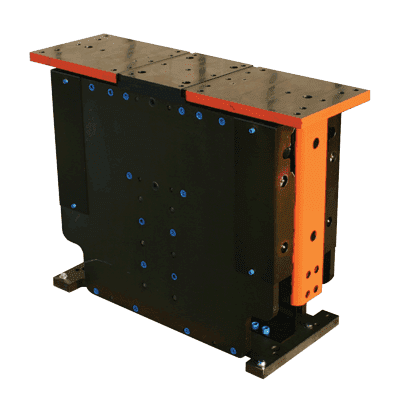

    Series PFC Pneumatic Frame Clamp - Mongo

    Series PFC Pneumatic Frame Clamp - Mongo

    • Up to 52,000 lbs of total clamp force
    • High-force forming clamp
    • Long jaw travel positioning clamp
    • Ideal for large part applications
    Series PLC Robust Pneumatic Pin Clamp

    Series PLC Robust Pneumatic Pin Clamp

    • Rugged design for harsh applications
    • Multiple pin diameters available
    • Enclosed finger design superior to competitive models

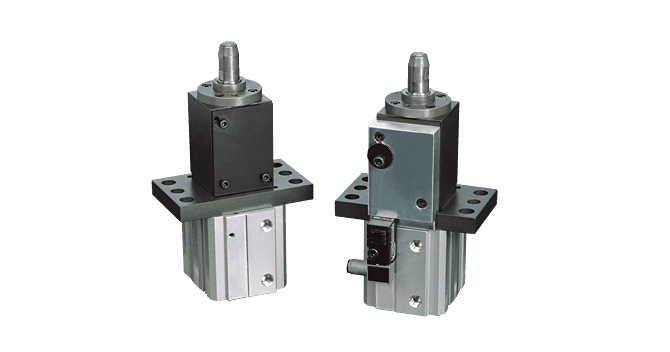

    Series PLK Versatile Pneumatic Pin Clamp

    Series PLK Versatile Pneumatic Pin Clamp

    • Ideal for applications where pins are required to locate parts and securely hold
    • Completely enclosed finger/pin protects against weld slag and contamination
    • May be used for drop-in replacements for competitor units

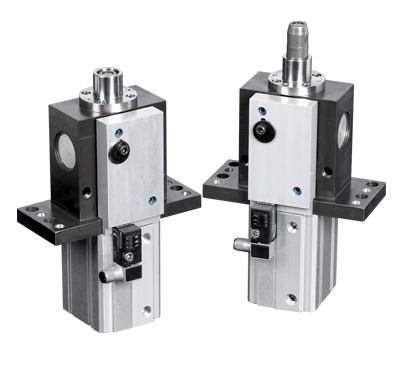

    Series PLKD Versatile Pneumatic Disappearing Pin Clamp

    Series PLKD Versatile Pneumatic Disappearing Pin Clamp

    • Ideal for applications where pins are required to locate parts and securely hold
    • Completely enclosed finger/pin protects against weld slag and contamination
    • Main pin retracts fully into part support for easy part removal
